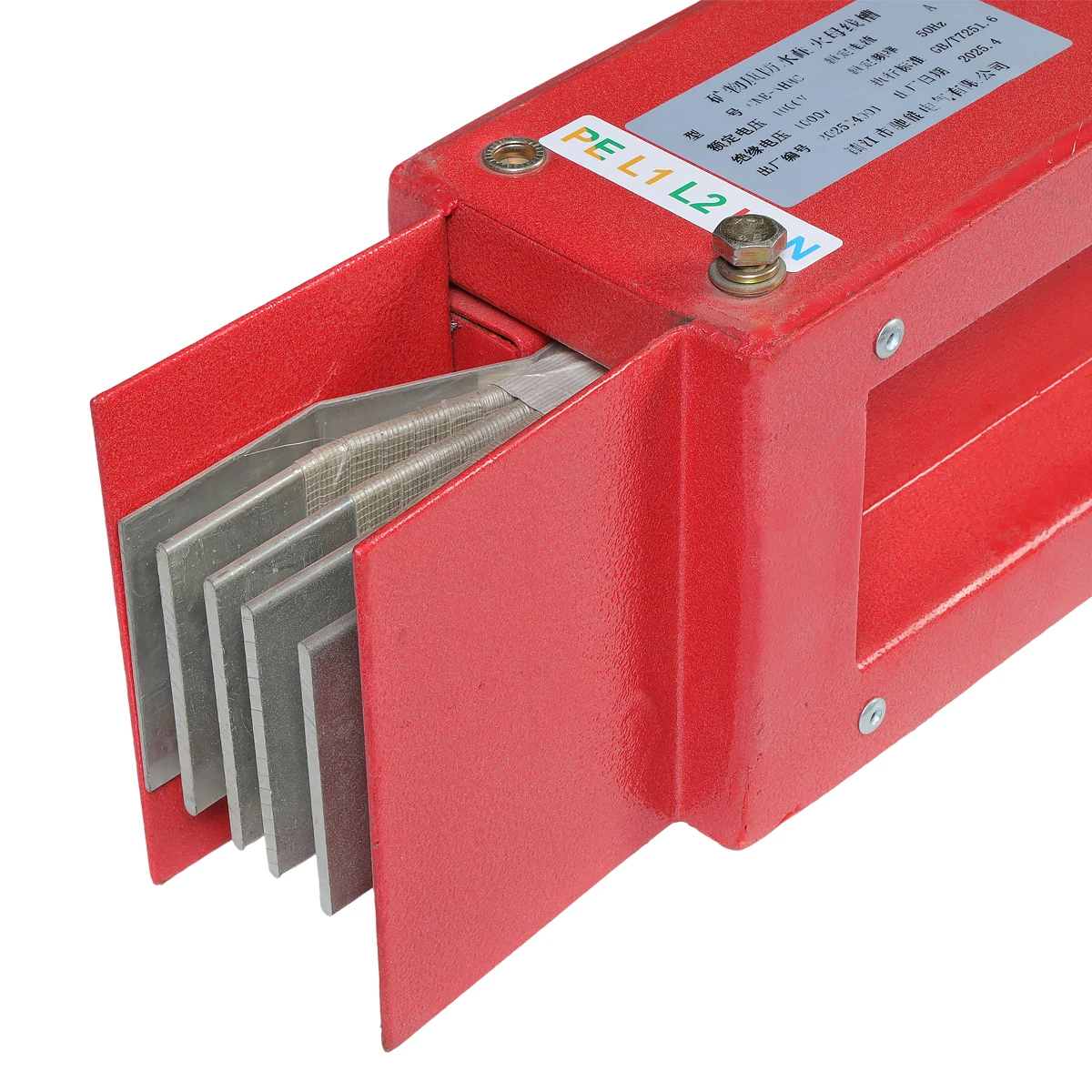

·Copper busbar conductor with stable electrical conductivity
·Lightweight, durable, stable in structure, and easy to install

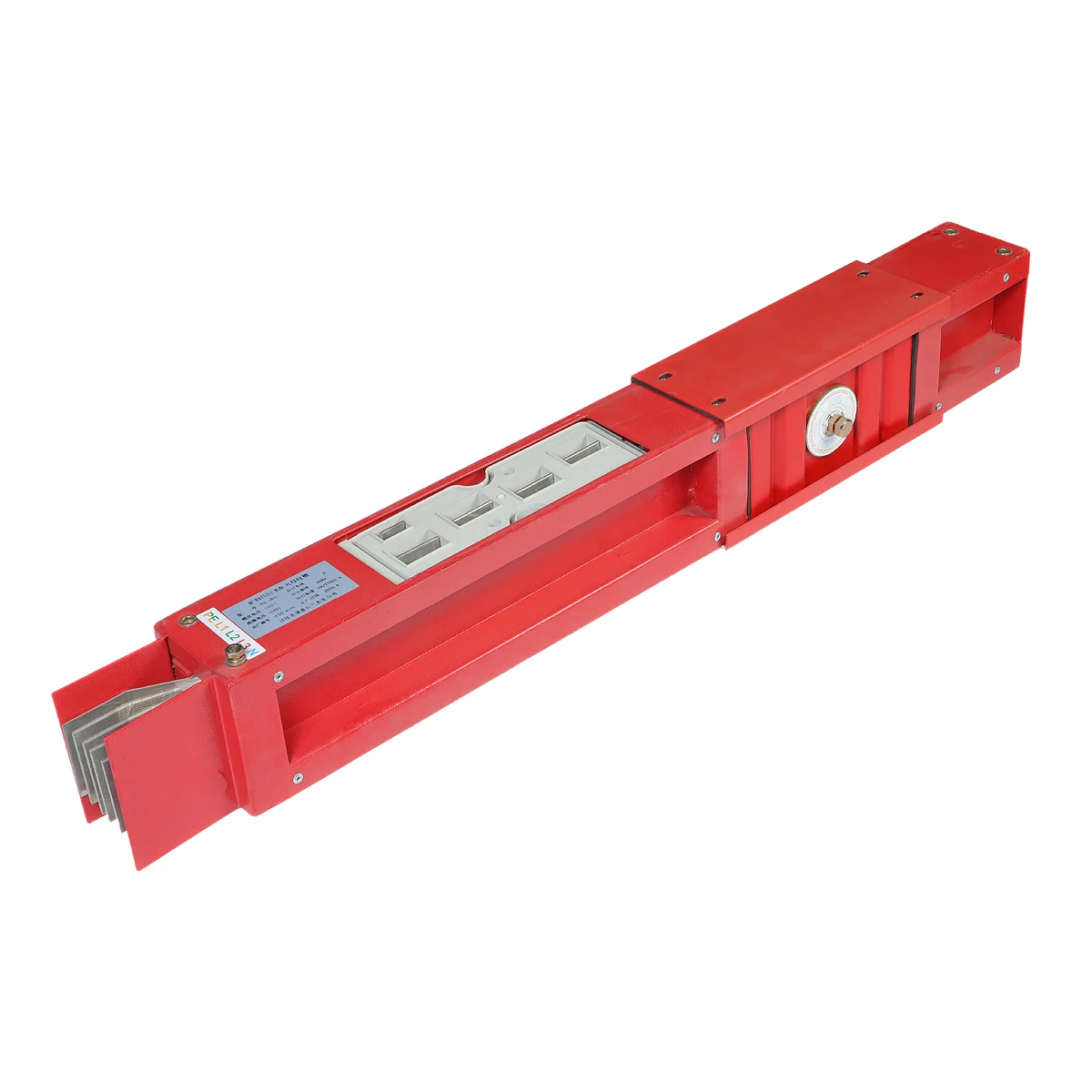

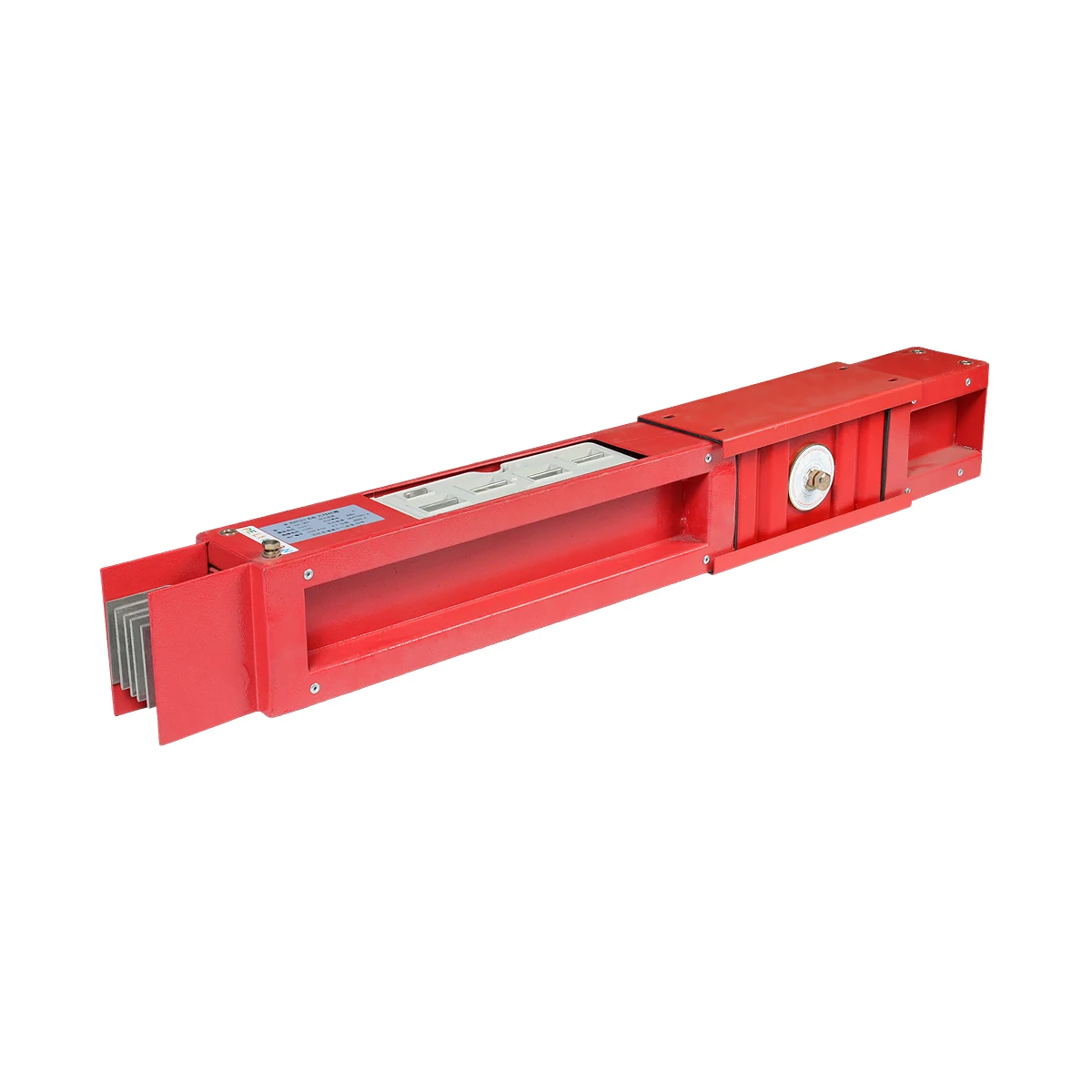

CNE High-performance Low Voltage Mineral-insulated Waterproof Fire Resistant Compact Busway Busbar Busduct
The CNE mineral-insulated busway system delivers superior performance and reliability for low-voltage power distribution applications. Engineered with advanced waterproof and fire-resistant properties, this compact busduct solution ensures continuous power supply even in challenging environments. The robust mineral insulation provides excellent thermal stability and electrical protection while maintaining a space-saving design. Perfect for commercial buildings, industrial facilities, and data centers, this busbar system offers easy installation, minimal maintenance, and outstanding short-circuit protection. Its IP54-rated enclosure guarantees protection against water splashes and dust, while the fire-resistant construction maintains circuit integrity during emergencies. With high current-carrying capacity and flexible configuration options, this busway system provides a safe, efficient, and cost-effective solution for modern power distribution needs.
- Overview
- Recommended Products
·Polyester film insulation, double - wrapped, easy to connect

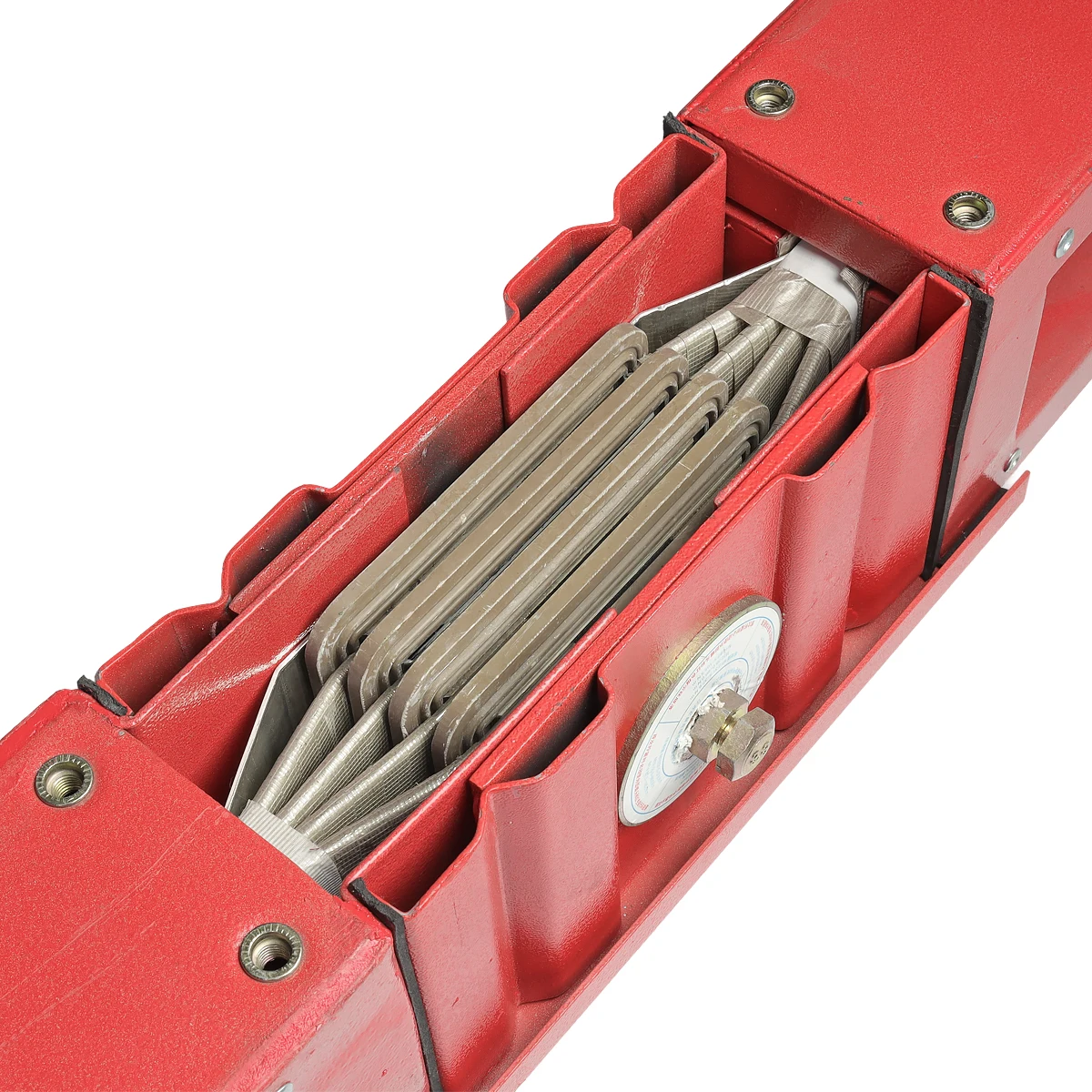

"Sandwich" / "H" Type Structure
The bus duct's insulating material is a polyester film. It's double - wrapped, with up to six layers between phases, ensuring reliable insulation. This insulation material, thermally rated at Class B, can withstand over 10,000V per layer.
Application |
Electric Power Transmission |
Size |
Width 128/144mm |
Rated Frequency |
50/60Hz |
Protection Level |
IP54/IP66 |
Rated Voltage |
380/660 V |
Surface treatment |
Tin Plated on Contact |
Phase |
5 Wires |
Certificate |
CCC CE ISO |
Warranty |
2 Years |
Packing |
Wooden Case |
FAQ
Q1:Are you a manufacturer or a trading company?
A:We are a professional manufacturer of bus duct, cable trays, and switchgear.
Q2:What is your payment term?
A:Our usual payment is 50%TT in advance ,50%TTbefore shipment (the bill of landing).Other payment methods can also be negotiated.Q3:How long is the warranty period of your products?
A:Our products usually come with a two-year warranty. If you are concerned about the product quality, we support sample orders.
Q4:How long is the production time of the product?
A:In the case of less than 100 meters, the production will be completed within 15 days after receiving the advance payment. For the remaining situations, it will be determined through negotiation.
