CNE High Performance High Voltage Tubular Busway Busbar for Long Distance Electric Power Transmission

CNE High Performance High Voltage Tubular Busway Busbar for Long Distance Electric Power Transmission

The CNE High Voltage Tubular Busway System delivers superior power transmission performance for long-distance applications. Engineered with premium tubular conductors, this robust busbar system ensures maximum electrical efficiency while minimizing power losses. The enclosed tubular design provides excellent protection against environmental factors and enhanced safety during operation. Featuring advanced insulation technology and high-grade materials, it maintains stable performance under demanding conditions and high voltage loads. This system is ideal for industrial facilities, power plants, and large commercial buildings requiring reliable power distribution over extended distances. The modular design allows for flexible installation and easy maintenance, while the compact structure saves valuable space compared to traditional cable systems. Backed by rigorous testing and compliance with international safety standards, CNE's tubular busway system guarantees long-term dependability for your power transmission needs.

Overview
Recommended Products

CNE High Performance High Voltage Tubular Busway Busbar for Long Distance Electric Power Transmission details

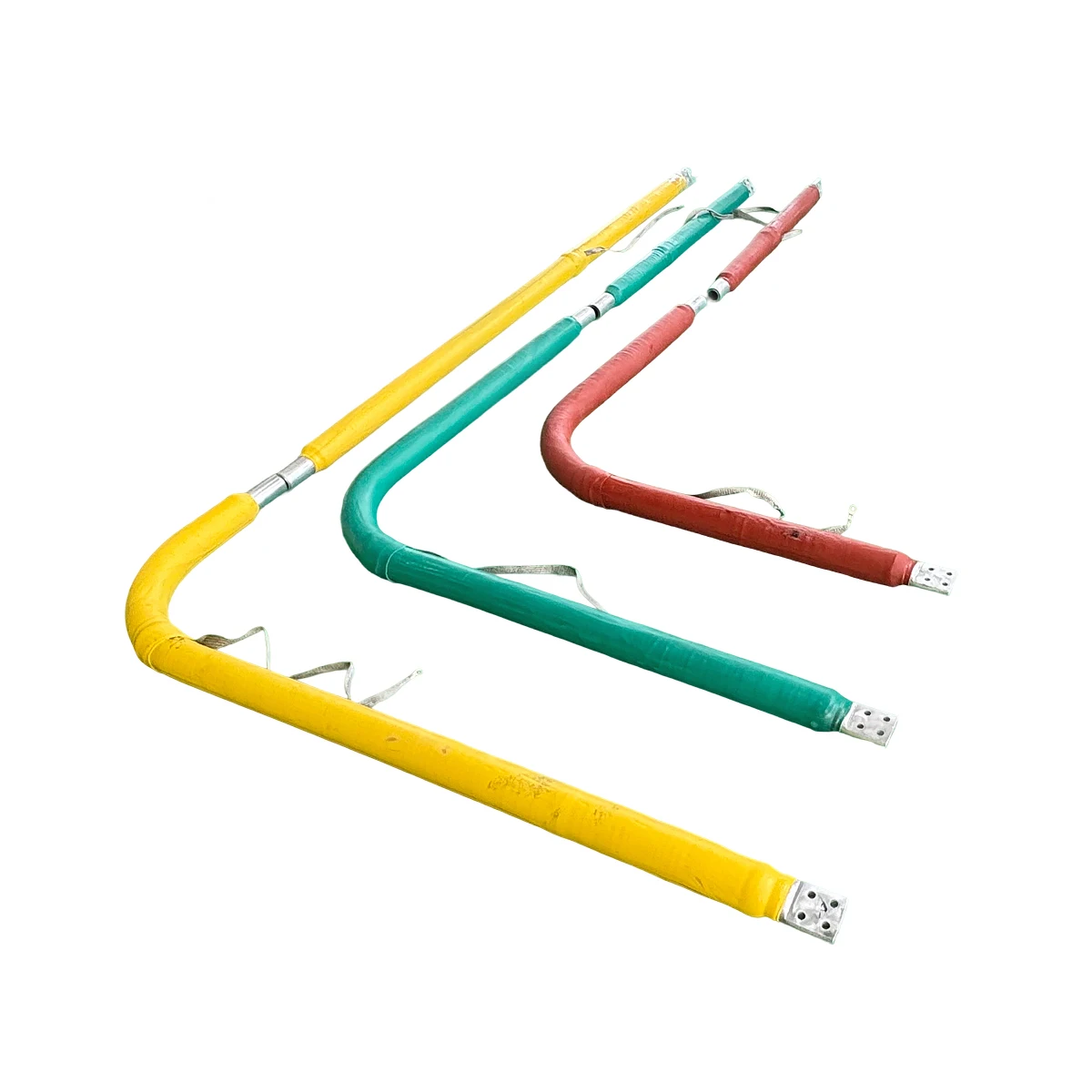

CNE High Performance High Voltage Tubular Busway Busbar for Long Distance Electric Power Transmission factory

Advantage

·Low skin effect and high current - carrying capacity per unit cross - section.

·Good heat dissipation conditions.

·High allowable stress, large span, and high mechanical strength.

·Strong electrical insulation and high stability of the main insulation material.

The insulation of the tubular busbar is an insulating structure formed by the alternation of multiple layers of insulating and
shielding materials.

It has excellent electrical and chemical properties, low dielectric loss, flame retardancy, aging resistance, and a long service
life.

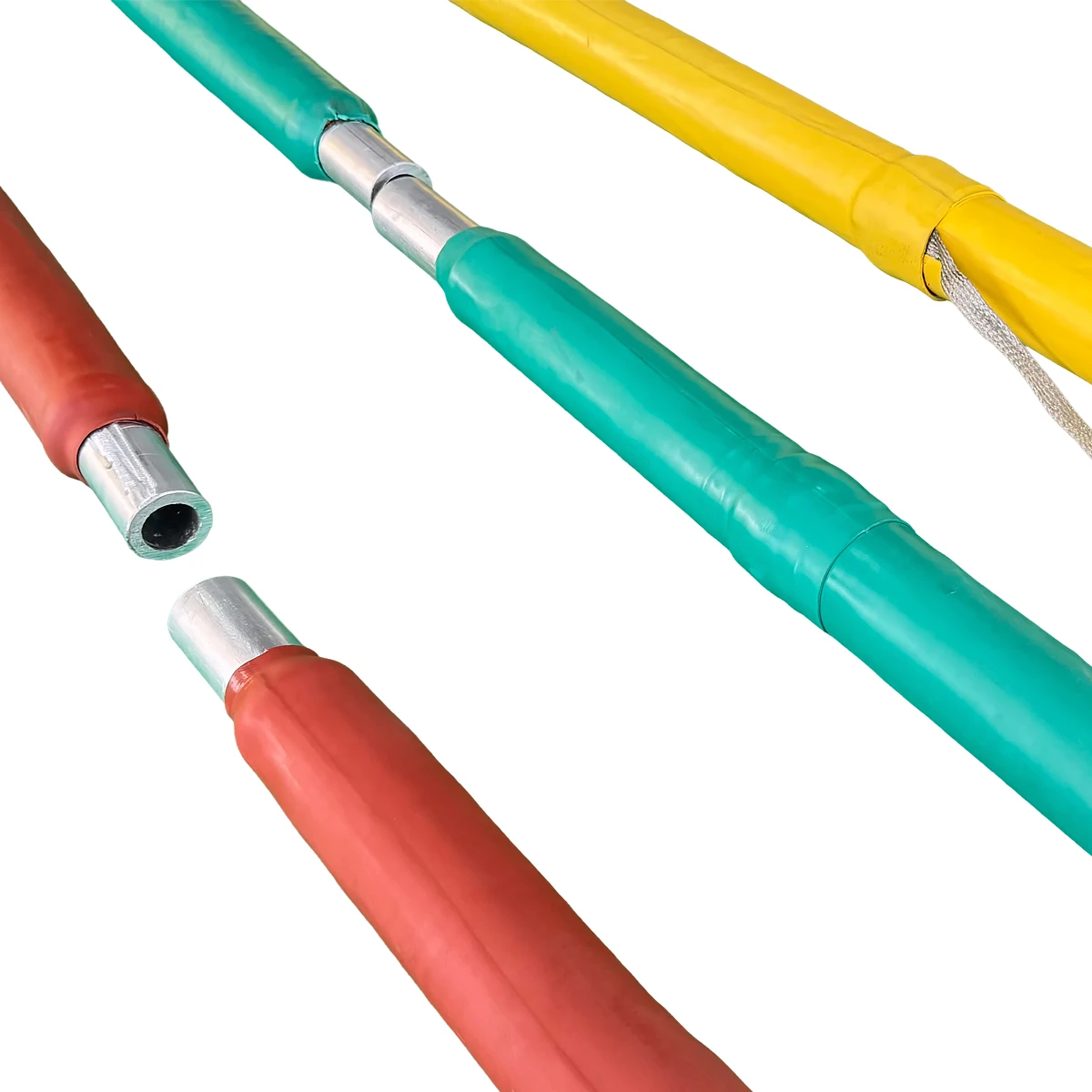

CNE High Performance High Voltage Tubular Busway Busbar for Long Distance Electric Power Transmission manufacture

CNE High Performance High Voltage Tubular Busway Busbar for Long Distance Electric Power Transmission supplier

Application	Electric Power Transmission
Size	Width 128/144mm
Rated Frequency	50/60Hz
Protection Level	IP54/IP66
Rated Voltage	12/40.5KV
Surface treatment	Tin Plated on Contact
Phase	5 Wires
Certificate	CCC CE ISO
Warranty	2 Years
Packing	Wooden Case

FAQ

Q1:Are you a manufacturer or a trading company?

A:We are a professional manufacturer of bus duct, cable trays, and switchgear.

Q2:What is your payment term?

A:Our usual payment is 50%TT in advance ,50%TTbefore shipment (the bill of landing).Other payment methods can also be negotiated.Q3:How long is the warranty period of your products?

A:Our products usually come with a two-year warranty. If you are concerned about the product quality, we support sample orders.

Q4:How long is the production time of the product?

A:In the case of less than 100 meters, the production will be completed within 15 days after receiving the advance payment. For the remaining situations, it will be determined through negotiation.
