·Copper busbar conductor with stable electrical conductivity
·Lightweight, durable, stable in structure, and easy to install

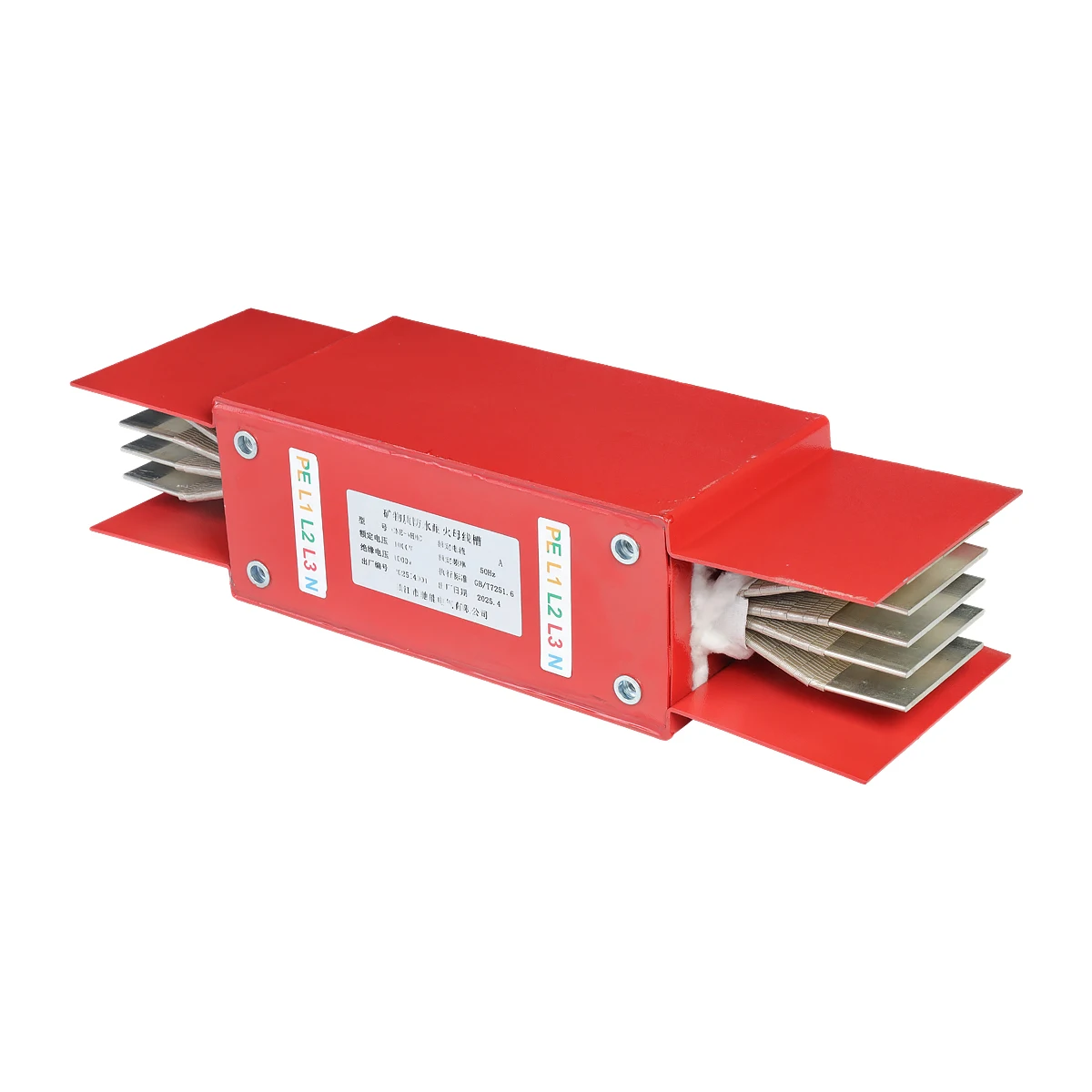

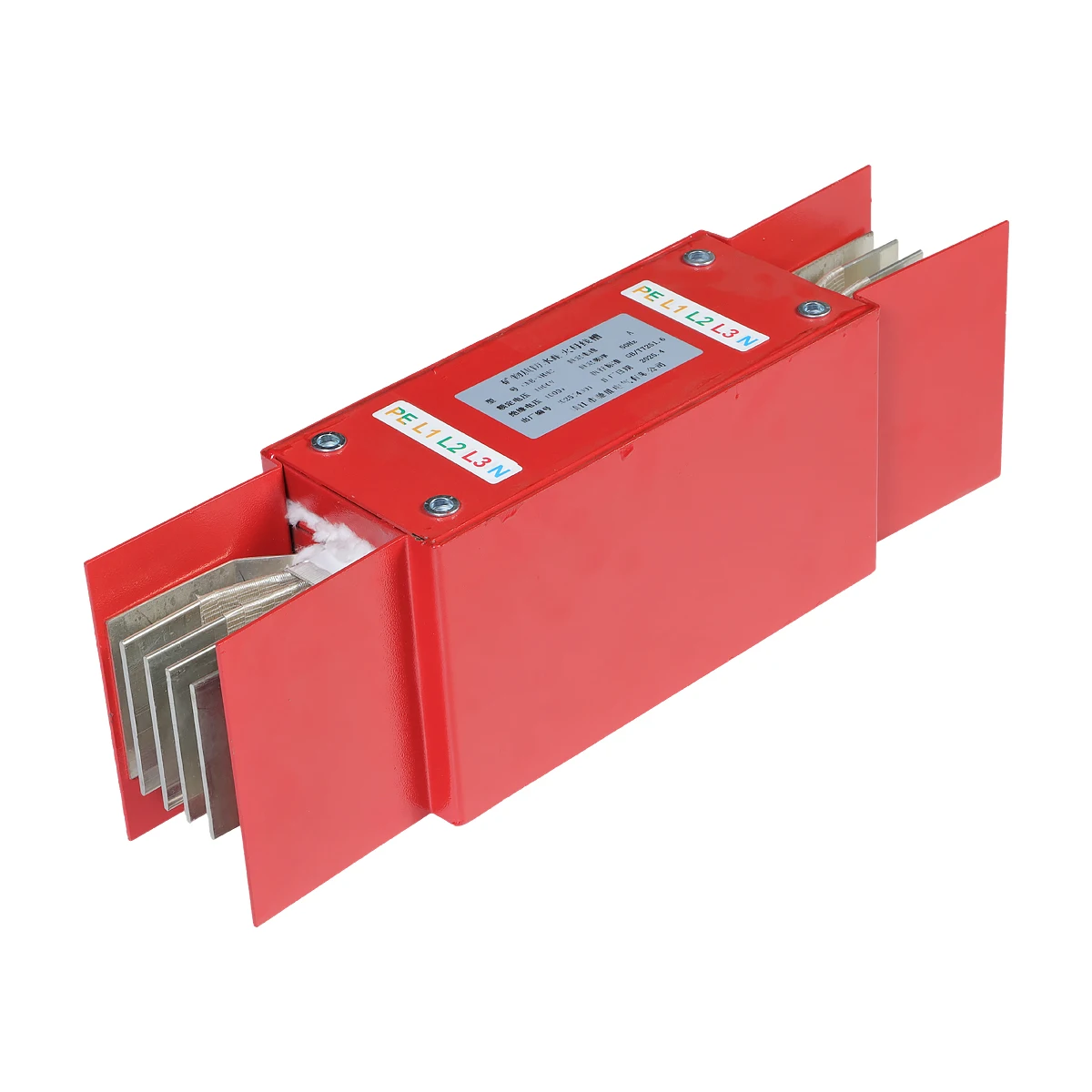

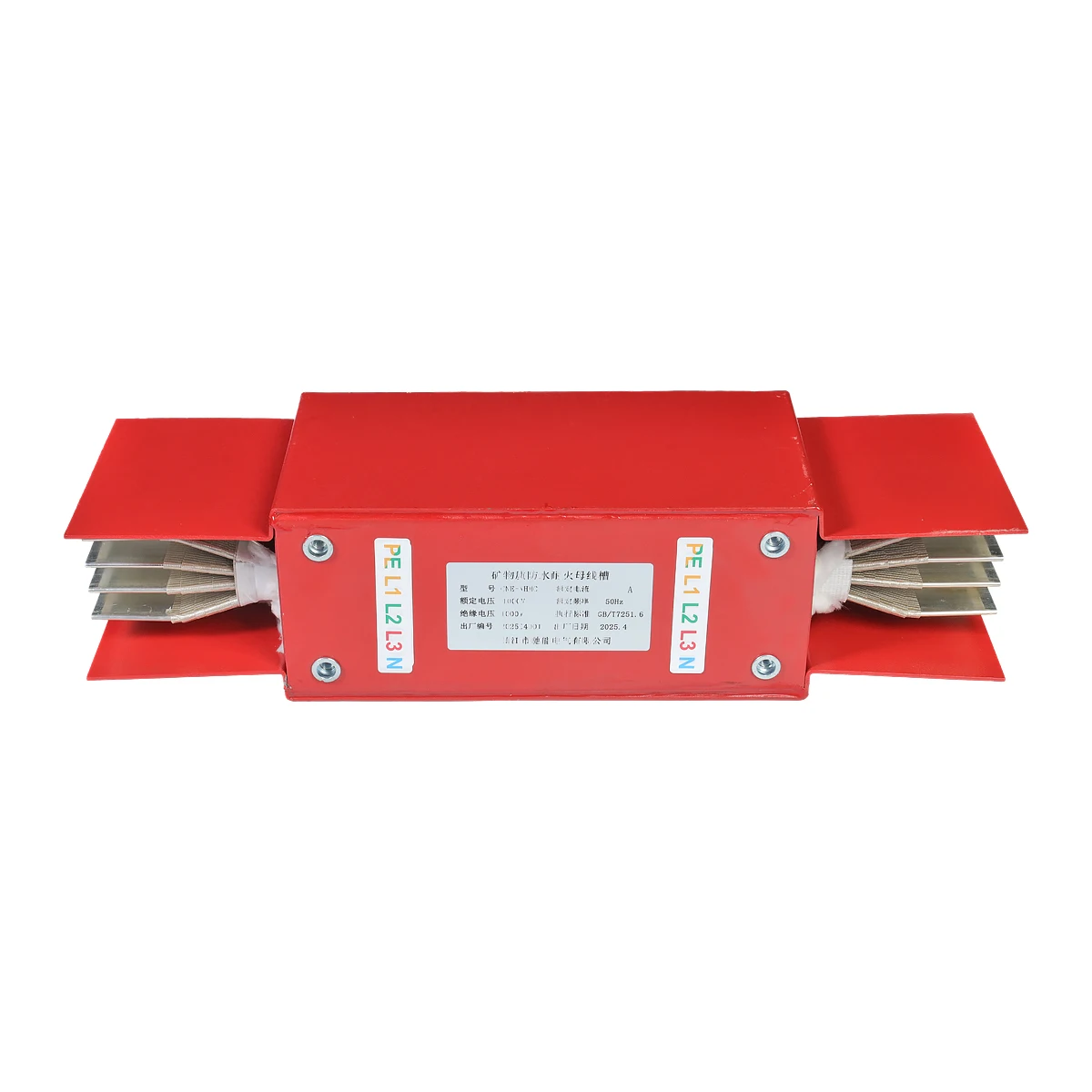

CNE Customization Low Voltage Mineral-insulated Waterproof Fire-resistant Busway Busduct
The CNE mineral-insulated busway system delivers exceptional performance and reliability for critical power distribution applications. Engineered with advanced waterproof and fire-resistant properties, this low-voltage busduct system ensures continuous operation even in challenging environments. The mineral insulation technology provides superior thermal stability and electrical protection compared to traditional solutions. Custom-designed to meet specific project requirements, this busway system is ideal for commercial buildings, industrial facilities, and data centers where uninterrupted power supply is essential. Its compact design saves valuable space while offering easy installation and maintenance. The robust construction meets international safety standards and provides excellent short-circuit protection. With outstanding heat dissipation and moisture resistance, this busway system guarantees long-term reliability and optimal electrical distribution efficiency.
- Overview
- Recommended Products
·Polyester film insulation, double - wrapped, easy to connect

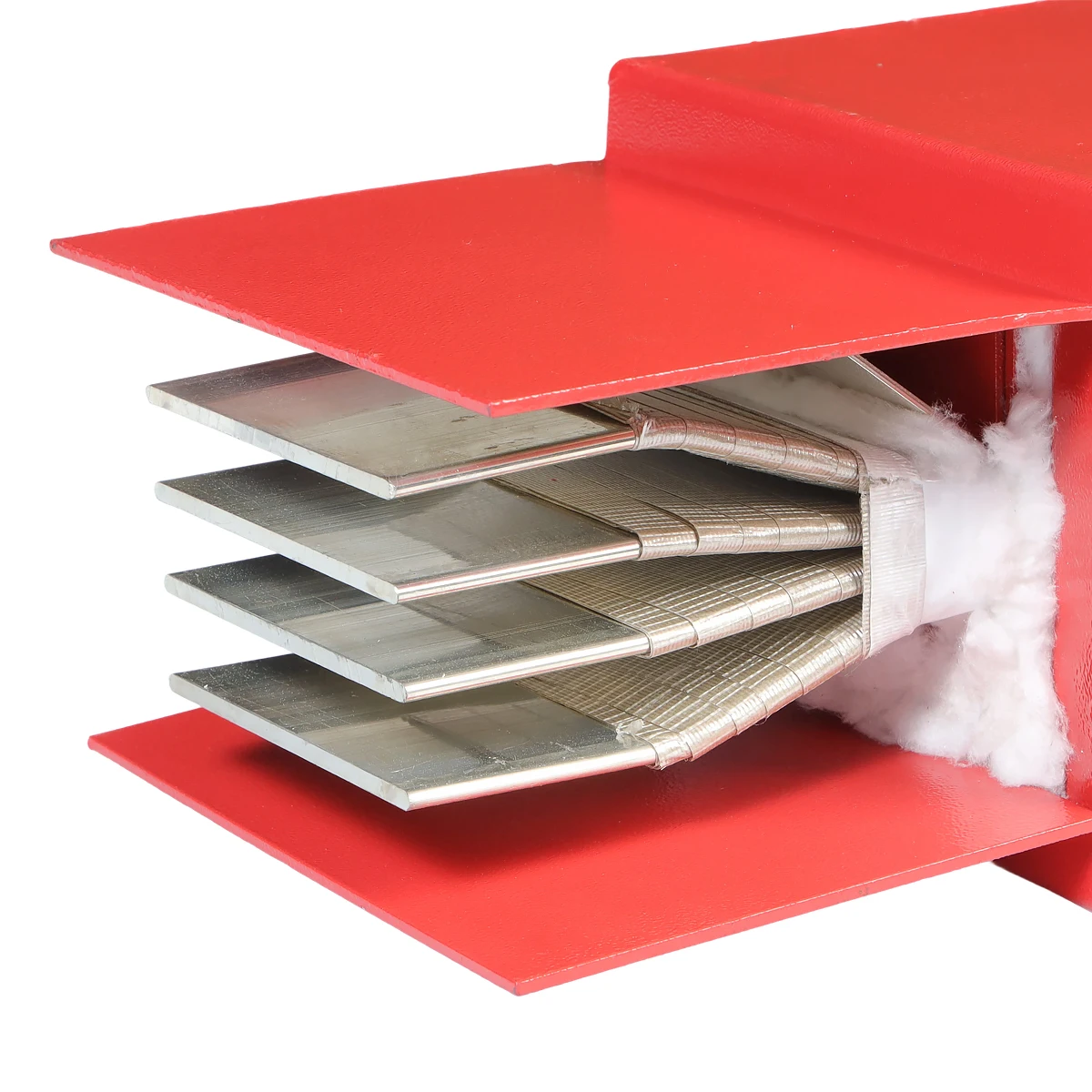

"Sandwich" / "H" Type Structure
The bus duct's insulating material is a polyester film. It's double - wrapped, with up to six layers between phases, ensuring reliable insulation. This insulation material, thermally rated at Class B, can withstand over 10,000V per layer.
Application |
Electric Power Transmission |
Size |
Width 128/144mm |
Rated Frequency |
50/60Hz |
Protection Level |
IP54/IP66 |
Rated Voltage |
380/660 V |
Surface treatment |
Tin Plated on Contact |
Phase |
5 Wires |
Certificate |
CCC CE ISO |
Warranty |
2 Years |
Packing |
Wooden Case |
FAQ
Q1:Are you a manufacturer or a trading company?
A:We are a professional manufacturer of bus duct, cable trays, and switchgear.
Q2:What is your payment term?
A:Our usual payment is 50%TT in advance ,50%TTbefore shipment (the bill of landing).Other payment methods can also be negotiated.Q3:How long is the warranty period of your products?
A:Our products usually come with a two-year warranty. If you are concerned about the product quality, we support sample orders.
Q4:How long is the production time of the product?
A:In the case of less than 100 meters, the production will be completed within 15 days after receiving the advance payment. For the remaining situations, it will be determined through negotiation.
